UVC Air Disinfection
_______
Highly reflective media designed for UVC air disinfection products
Slider

Ensure properly disinfected air with Porex Virtek reflective media lining your UVC air disinfection products

With the recent heightened awareness around clean indoor air, utilizing a UVC system within an air handling unit is proving to be one of the most effective solutions.  UVC energy is proven to deactivate most pathogens; however, to be effective, the UV energy must be uniformly dispersed within the reaction chamber.  This is where Porex Virtek reflective media excels.

Porex Virtek offers:

  • Reflectivity rates of up to 97%
  • Almost 100% Lambertian (diffuse) reflectivity
  • Extremely uniform energy distribution within the reaction chamber
  • Up to 4 times higher flux in a closed system versus aluminum

Flow reactor irradiance comparison

Traditional Aluminum lining

Reactor Chamber with Aluminum lining

Reactor Chamber with Aluminum lining

  • Typical Reflectivity around 70%
  • Specular reflection means hot and cold spots and uneven disinfection
  • The orientation and quantity of UV source becomes much more important
  • Energy needed for 3 log reduction increases
  • Average irradiance (E) = (Edirect) + (Ereflected) :If Reflectivity = 70%
  • At a source irradiance (E) of 1:  Average irradiance = 1 + (1 / (1-0.7))= 4.3

Optimal PTFE lining

Reactor Chamber with PTFE lining

Reactor Chamber with PTFE lining

  • Reflectivity of up to 97%
  • Reflects diffuses in all directions uniformly (minimal hot/cold spots)
  • UV orientation less critical
  • Energy consumption is lower
  • Average irradiance (E) = (Edirect) + (Ereflected) :If Reflectivity = 97%
  • At a source irradiance (E) of 1:  Average irradiance = 1 + (1 / (1-0.97))= 34.3
  • 8 times the average irradiance versus 70% aluminum!

Specific applications

HVAC air handling systems

HVAC air handling systems

self-contained air purifiers

Self-contained air purifiers

Personal air purifiers

Personal air purifiers

HVAC air handling systems

HVAC Air Handling Systems

Optimize efficiency and ensure maximum pathogen disinfection within your HVAC air handling system

  • Highly diffuse reflectivity ensures extremely uniform UVC energy distribution
  • Minimize hot and cold spots within the reaction chamber
  • Increase effective pathogen deactivation rates by up to 4X versus other reflective media
  • Highly reflective and durable down to 200 nm UVC wavelength

Formats available:

  • Rollstock
  • Slit rolls
  • Die-cut shapes
  • Discs
  • Thermoformed shapes
  • Rolled tubes
  • Adhesive backed

Tech Specs

Check out available product options and competitive data

Slider
Resources

Explore videos and collateral on our UVC reflective media solutions

Slider

self-contained air purifiers

Self-contained Air Purifiers

Optimize efficiency and ensure maximum pathogen disinfection within your self-contained air purification system

  • Highly diffuse reflectivity ensures extremely uniform UVC energy distribution
  • Minimize hot and cold spots within the reaction chamber
  • Increase effective pathogen deactivation rates by up to 4X versus other reflective media
  • Highly reflective and durable down to 200 nm UVC wavelength

Formats available:

  • Rollstock
  • Slit rolls
  • Die-cut shapes
  • Discs
  • Thermoformed shapes
  • Rolled tubes
  • Adhesive backed
Tech Specs

Check out available product options and competitive data

Slider
Resources

Explore videos and collateral on our UVC reflective media solutions

Slider

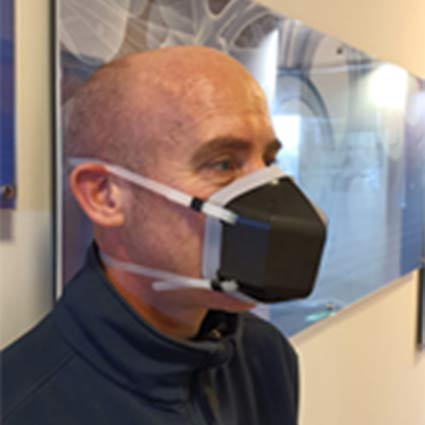

Personal air purifiers

Personal Air Purifiers

Optimize efficiency and ensure maximum pathogen disinfection of personal UV air sterilization units

  • Highly diffuse reflectivity ensures extremely uniform UVC energy distribution
  • Minimize hot and cold spots within the reaction chamber
  • Increase effective pathogen deactivation rates by up to 4X versus other reflective media
  • Can be thermoformed into complex shapes or made into tubes to fit into tight areas

Formats available:

  • Rollstock
  • Slit rolls
  • Die-cut shapes
  • Discs
  • Thermoformed shapes
  • Rolled tubes
  • Adhesive backed
Tech Specs

Check out available product options and competitive data

Slider
Resources

Explore videos and collateral on our UVC reflective media solutions

Slider
