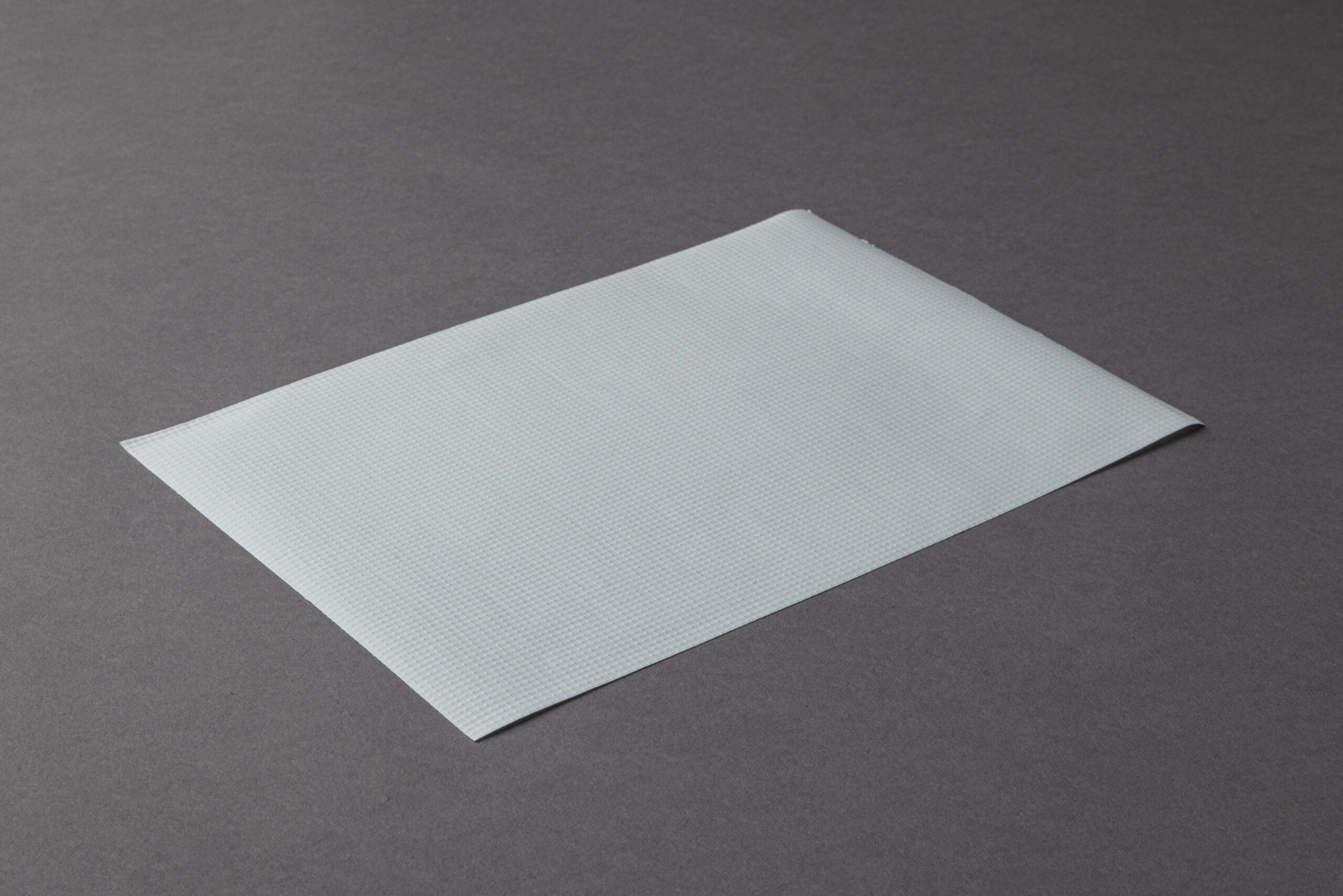

For automotive and electronic applications to protect, seal, vent, and pressure equalize. Available in sheets or adhesive vent roll stock.
Can be supplied in format of:
– Master rolls (330 ±5mm width) on 75mm (3”) plastic core
– Slit rolls on a 75mm (3”) plastic core
– Die cut shapes
• Assembly Suggestions:
– Ultrasonic welding
– Thermal welding
– Over-moulding
– Pressure Sensitive Adhesive
– Compression seal
• Raw material is compliant with:
– PFOA Free, Compliant with (EC) No 1907/2006 REACH and
Persistent Organic Pollutants (POP) EU 2019/1021.
– Compliant with RoHS, WEEE, REACH
– Operating temperature range: -40 to 260ºC
– Passes salt fog test: Test Method ASTM B117-11
Measurements:
| PTFE MEMBRANE: | 100% (CAS No. 9002–84–0) |
|---|---|
| WATER ENTRY PRESSURE (WEP): | Min 185, Typical 270 (mbar) |
| AIR FLOW: | Min 48, Typical 85 (l/hr/cm² Δp 70mbar) |
| THICKNESS: | 0.30 (mm ±0.03mm) |
| IP RATING: | 64, 67 (BS EN 60529: 1992) |
| FILTRATION EFFICIENCY: | 0.5μ (IEST RP-CC007.2 200) |
