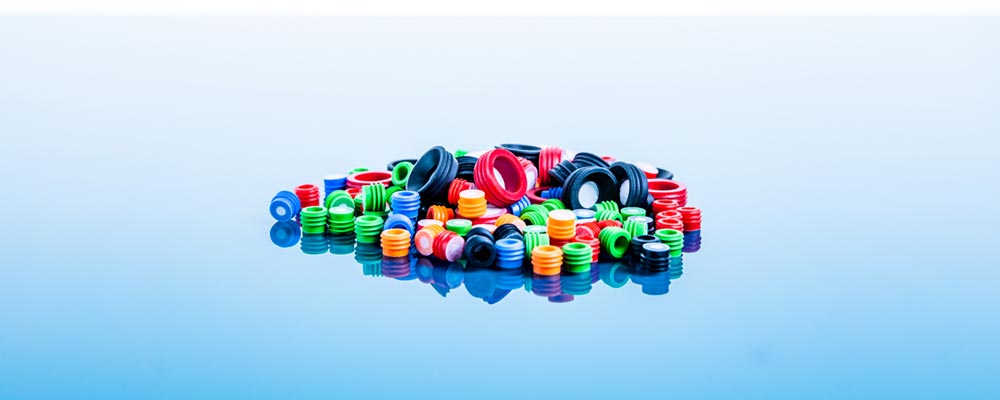

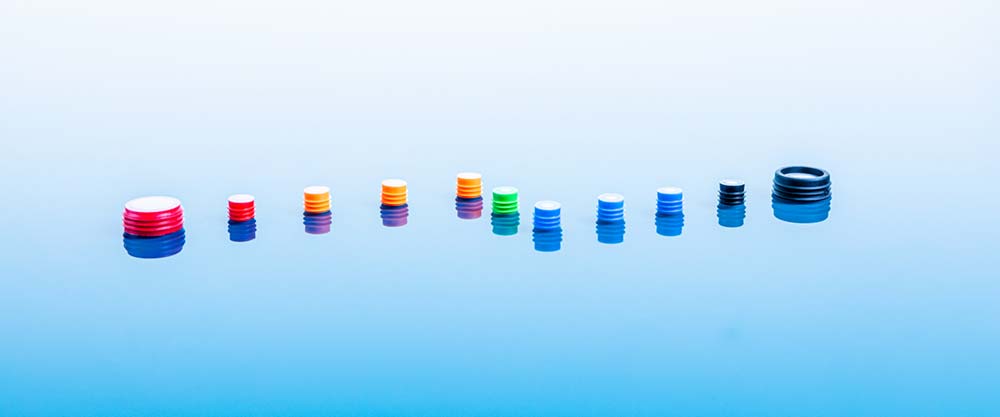

OxySeal® Pressure Compensation Units
Easy Plug & Play Solution for Various Types of Enclosures
To prevent the ingress of oily liquids, water, dust, dirt, salts, or other contaminants into your electronics, OxySeal® pressure compensation units can be deployed as an easy plug-and-play venting solution for housings having inverted cylindrical openings. Using hydrophobic track-etched membranes, these injection molded plugs – which can also be treated to be oleophobic – are composed with a thermoplastic elastomer seal that does not require an additional anchor or fastener to ensure a tight fit.
Beyond its standard portfolio, OxySeal® can also be fully customizable. This includes selection of the dimensions, shape, and membrane properties specific to your application’s requirements.
- 100% Free of PFOA: Compliant with (EC) 1907/2006 REACH / Regulation (EU) 2019/1021 POP
- Single unit combining membrane and sealing ring
- Simple plug-in assembly
- Suitable for automation
- 100% visual control
- Fully customizable
| a) Outer dia. Ø [mm] | 3.1 | 6.2 | 13 | 12 |
| b) Height [mm] | 3.26 | 4.6 | 5 | 3 |
- Sealing body: Thermoplastic elastomer
- Membrane: PET with hydrophobic coating (with or without lamination)
| Dimension | Specifications |
|---|---|
| Temperature range (TPE high temperature) | – 40 …. + 150° C |
| Temperature range (TPE standard temperature) | – 40 …. + 120° C |
| Hydrophobic/ Oleophobic treatment: | Grade up to 7.5; AATCC TM 118 |
| – Salt spray resistance test2 | According to IEC 60068-2-52, based on validation by the customer |
| – Temperature resistance test1 | In accordance with ISO 16750-4 |
| – Ice water shock test1&2 | In accordance with ISO 16750-4 |
| – Climate resistance test | In accordance with ISO 16750-4 |
| – Chemical resistance test1 | According LV124/ ISO 16750-5 |
| – IP Protection1 | IP 64/65/66/67/68, according to DIN 40050 |
1 Testing in Progress
2 Based on Customer Validation
Membrane Technologies Available
Technologies
Unique-Mem® Unlaminated Track-Etched Membranes
Unique-Mem® track-etched membranes, available as hydrophilic or hydrophobic, are characterized by cylindrical shaped pores penetrating the membrane in different angles. They have a smooth flat surface and well-defined flow rates..
Technologies

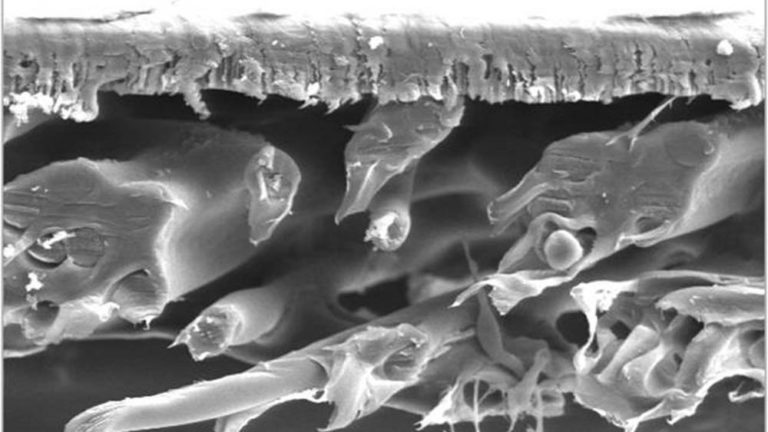

RoTrac® Laminated Track-Etched Membranes
RoTrac® track-etched membranes are Unique-Mem® membranes that are supported with non-wovens (PP or PET) to create a more robust membrane. They are available as either hydrophilic or hydrophobic membranes.
Technologies
Fiber-Based Membranes
Fiber-based membranes are surface modified using a super-hydrophobic coating to repel water and other liquids while still allowing maximum airflow.
