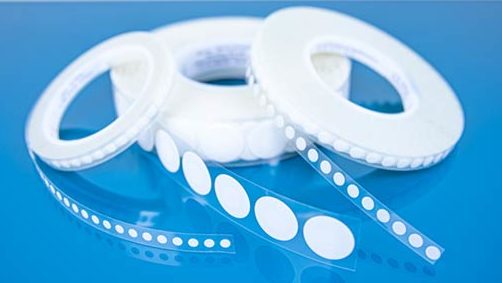

OxyPad® Self-Adhesive Membrane Pads
Ventilation and Protection from Liquid Ingress, Dust, and Dirt – Made Easy
To achieve more reliable, longer-lasting ventilation of your device, OxyPad® self-adhesive membrane pads can be easily integrated to provide ventilation which helps to avoid harmful condensation, ensures pressure equalization, and protects against the ingress of water, dust, or other harmful particulates.
These 100% PFOA- free hydrophobic and oleophobic- treated membrane vents can be incorporated via manual or automated assembly in various standard and customizable sizes with different membrane properties. OxyPad® is available using both unlaminated UNIQUE-MEM® and laminated ROTRAC® membrane technologies.
- 100% Free of PFOA: Compliant with (EC) 1907/2006 REACH / Regulation (EU) 2019/1021 POP
- Precisely defined pore-size and pore-density for unmatched airflow and WEP stability
- Various adhesives available
- Smooth surface properties for excellent liquid repellency
- Space-saving assembly
- Wide variety of customizable design options
- Easily integrated into automatic assembly processes
- Available with backing for increased mechanical stress resistance
- High temperature stability
- High resistance towards pressure changes

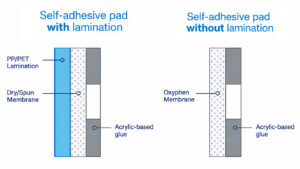

Self-Adhesive Pad With and Without Lamination
 |
 |
 |
 |
 |
 |
| Outer Diameter [mm] | 5 | 7 | 8 | 10 | 14 |
| Free Membrane Diameter [mm] | 2 | 3 | 4 | 5.5 | 8 |
- PET (hydrophilic and hydrophobic)
- Polycarbonate (PC)
- Alternative membrane materials available on demand
| Specification | Unique-Mem® Track-Etched Membranes | RoTrac® Track-Etched Membranes |
|---|---|---|
| Bandwidth (mm) |
10, 13, 14.5, 20 & custom sizes
|
|
| High Quality Raw Materials |
PET – naturally slightly hydrophilic
PC – naturally slightly hydrophobic
|
PET-Membrane/ PET-Nonwoven –harder
PET-Membrane/ PP-Nonwoven – softer
|
| Pore Size Ranges |
0.1µm to 10µm
|
0.2µm to 3.0µm
|
| Pore Density Ranges |
105 to 109 pores per cm2
|
2×106 bis 3×108 pores per cm2
|
| Thickness Ranges |
8µm to 50µm
|
90µm to 220µm
|
| Temperature Ranges |
– 40°C and 160°C (for special application < 200°C)
|
– 40°C and 130°C (for special application < 160°C)
|
| Air Flow Ranges |
Up to 800 l / (bar cm2 min)
|
Up to 37 l / (bar cm2 min)
|
| Hydrophilic Treatments |
Various hydrophilic treatments increase water flow rate and wetting abilities of the membrane (example: PVP treatment)
|
|
| Hydrophobic / Oleophobic Treatment: |
Grade up to 7.5; AATCC TM 118
|
|
| Salt spray resistance test2 |
According to IEC 60068-2-52, based on validation by the customer
|
|
| Temperature resistance test1 |
In accordance with ISO 16750-4
|
|
| Ice water shock test1&2 |
In accordance with ISO 16750-4
|
|
| Climate resistance test |
In accordance with ISO 16750-4
|
|
| Chemical resistance test1 |
According LV124/ ISO 16750-5
|
|
| IP Protection1 |
IP 64/65/66/67/68, according to DIN 40050
|
|
1 Testing in Progress
2 Based on Customer Validation
View Page
Membrane Technologies Available
Technologies
Unique-Mem® Unlaminated Track-Etched Membranes

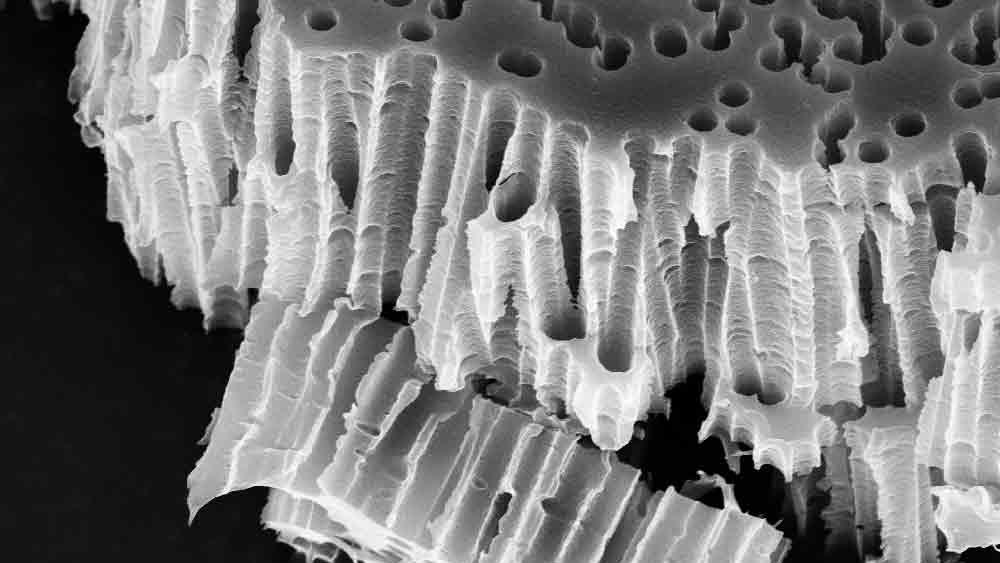

Unique-Mem® track-etched membranes, available as hydrophilic or hydrophobic, are characterized by cylindrical shaped pores penetrating the membrane in different angles. They have a smooth flat surface and well-defined flow rates..
Technologies
RoTrac® Laminated Track-Etched Membranes
RoTrac® track-etched membranes are Unique-Mem® membranes that are supported with non-wovens (PP or PET) to create a more robust membrane. They are available as either hydrophilic or hydrophobic membranes.
Technologies
Fiber-Based Membranes
Fiber-based membranes are surface modified using a super-hydrophobic coating to repel water and other liquids while still allowing maximum airflow.
