Improve your UV and lighting systems with highly reflective media
Our portfolio of highly reflective materials is ideal for UV and lighting systems. Available in sheet or three-dimensional shapes, our POREX Virtek® PTFE materials are over 97% reflective.
Using our materials assures your UV and lighting systems meet the highest quality standards with:
- Outstanding reflectance demonstrated by an average total reflectance of over 97% down to 210nm.
- High-temperature performance, with a working temperature of up to 260ºC.
- Lambertian reflectance at nearly 100%.
UV Reflectors
Maximize performance with UV reflectors
Specialty Lighting Reflectors
High-performing reflectors for specialty reflectivity applications
Instrumentation & Testing
Improve lighting performance with reflective media
Ultraviolet (UV) Reflectors
Maximize performance with UV reflectors
For ultraviolet light reflectivity, manufacturers trust our POREX Virtek sintered PTFE sheets and molded 3-D parts. With over 97% average reflectance from 250nm to 400nm, POREX Virtek® pure PTFE reflectors can maximize disinfection rates and minimize system cost.
Specifically designed for UV systems, our UV reflectors:
- Eliminate hot and cold spots – POREX Virtek PTFE scatters light in all directions, spreading UV light evenly across a surface and eliminating cold spots where bacteria may survive.
- Maximize lighting efficacy – With over 97% average reflectance from 220nm to 400nm, less light is lost to absorption.
- Maintain performance in high temperatures – Working temperature of POREX Virtek PTFE is 260ºC.

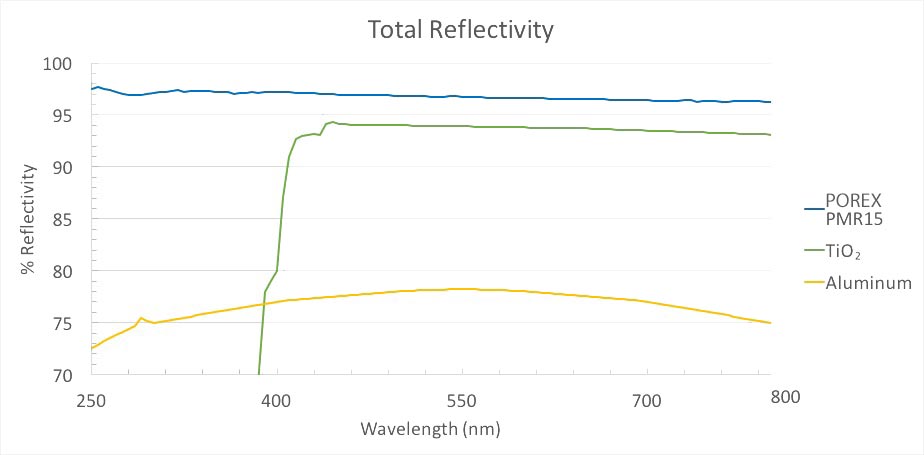

Typical Reflectivity of Porex Virtek PTFE Sheet vs. Aluminium and Stainless Steel
TYPICAL PROPERTIES OF POREX VIRTEK REFLECTIVE PTFE
| Product Number | Thickness (mm) | Max Operating Temp °C | UL-94 Certification | UL-746C Certification | Average Reflectivity (250-400nm) | Average Reflectivity (400-800nm) |
|---|---|---|---|---|---|---|
| PMR02 | 0.19 | 260 | V-0 | f2 | 80% | 76% |
| PMR03 | 0.25 | 260 | V-0 | f2 | 85% | 81% |
| PMR05 | 0.5 | 260 | 5VB, V-0 | f1 | 91% | 90% |
| PMR10 | 0.75 | 260 | 5VB, V-0 | f1 | 94% | 92% |
| PMR15 | 1.5 | 260 | 5VA, V-0 | f1 | 96% | 96% |
| PMR20 | 2 | 260 | 5VA, V-0 | f1 | 97% | 97% |

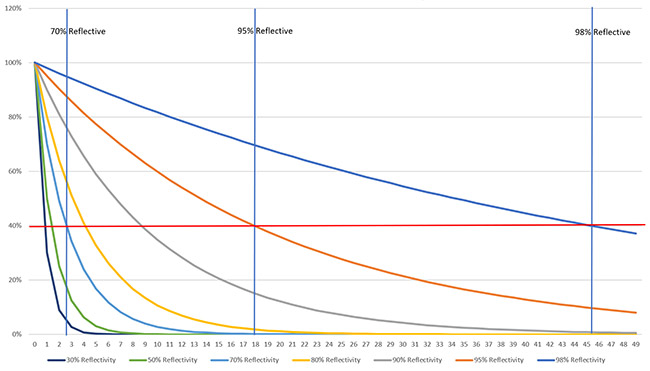

# Reflections vs. % Reflectivity
Porex Virtek reflective PTFE can usually outperform other materials at thinner thicknesses
Related Resources:
Demonstration video: UV-C Air Disinfection Chamber Demonstration – Porex Virtek PTFE vs Aluminum & Plastic
Datasheet: Porex LED Reflectors
Datasheet: Porex Virtek PTFE Solutions for Uniform UV and Visible Light Reflectivity
White Paper: Ultraviolet Reflectivity of Microporous PTFE Material
Demonstration video: UV-C Disinfection Chamber Demonstration
Demonstration video: Comparing Specular and Diffuse Reflectivity
Demonstration video: UV-C Reflectivity Comparison – POREX Virtek PTFE vs. common alumnium
Demonstration video: Porex high efficiency diffuse reflector
Demonstration video: UV reflectivity comparison of Porex Virtek PTFE-lined versus unlined PVC pipe
Demonstration video: UVC Absorption of Natural, Painted, and Pigmented Materials VS Porex Virtek PTFE
Demonstration video: UVC Chamber lined with Porex Virtek PTFE – object UV energy absorption versus orientation
Demonstration video: Reflectivity comparison of Porex Virtek sintered PTFE, expanded PTFE, and solid PTFE
Demonstration video: Simulated integrated sphere comparison of Porex Virtek PTFE, stainless steel, and aluminum
Blog Post: Ensuring uniform UV energy distribution is the key to proper disinfection
Specialty Lighting Reflectors
High-performing reflectors for specialty reflectivity applications
Specialty lighting applications require high-performing reflectors, that efficiently mix and diffuse light. Our POREX Virtek specialty lighting reflectors:
- Eliminate hot and cold spots – POREX Virtek PTFE scatters light in multiple directions, spreading and mixing the light evenly across a surface and eliminating hot spots and increasing color uniformity.
- Maximize lighting efficacy – With over 97% average average reflectance over the entire light spectrum, our reflective material captures wasted light and delivers it to the lighting task.
- Maintain performance in high temperatures – Working temperature of POREX Virtek™ PTFE is 260ºC.
TYPICAL PROPERTIES OF POREX VIRTEK REFLECTIVE PTFE
| Product Number | Thickness (mm) | Max Operating Temp °C | UL-94 Certification | UL-746C Certification | Average Reflectivity (250-400nm) | Average Reflectivity (400-800nm) |
|---|---|---|---|---|---|---|
| PMR02 | 0.19 | 260 | V-0 | f2 | 80% | 76% |
| PMR03 | 0.25 | 260 | V-0 | f2 | 85% | 81% |
| PMR05 | 0.5 | 260 | 5VB, V-0 | f1 | 91% | 90% |
| PMR10 | 0.75 | 260 | 5VB, V-0 | f1 | 94% | 92% |
| PMR15 | 1.5 | 260 | 5VA, V-0 | f1 | 96% | 96% |
| PMR20 | 2 | 260 | 5VA, V-0 | f1 | 97% | 97% |
# Reflections vs. % Reflectivity
Related Resources:
Datasheet: Porex LED Reflectors
Datasheet: Porex Virtek PTFE Solutions for Uniform UV and Visible Light Reflectivity
Demonstration video: Porex high efficiency diffuse reflector
Instrumentation and Testing
Improve lighting performance with reflective media
For instrumentation and testing systems, our POREX Virtek™ sintered PTFE sheets and molded 3-D parts offer multi-directional light, ideal for machine vision systems and integrating spheres where uniformly lighting surfaces of different geometries is a must.
Constructed with outstanding reflectance, POREX Virtek PTFE:
- Minimizes glare, with its 100% Lambertian reflection of light.
- Supports itself when handled – Does not require a backing or support scrim for handling.
- Supports versatile assembly options – Heat staking or vibrational welding can be used to secure the POREX Virtek™ PTFE to the lighting or housing structure.
